Nano-Polymer Conformal Coating

Features quick-drying, high heat dissipation, mold resistance, moisture resistance, and salt spray protection. Application: Electronic components, PCBs, and industrial control devices.

Apr 8th,2026 31 Views

Fast-Cure Nano Conformal Coat

YNT-SF-001

As electronic products become smaller and more integrated, components are denser and more fragile.
Iridium Technology’s Ultra-Thin Nano Conformal Coat differs from traditional conformal coatings by offering seconds-to-cure fast drying, efficient heat dissipation, and full waterproof protection, significantly reducing application time and cost while ensuring long-term reliability and environmental safety.

Core Functions & Advantages

Advanced Protection

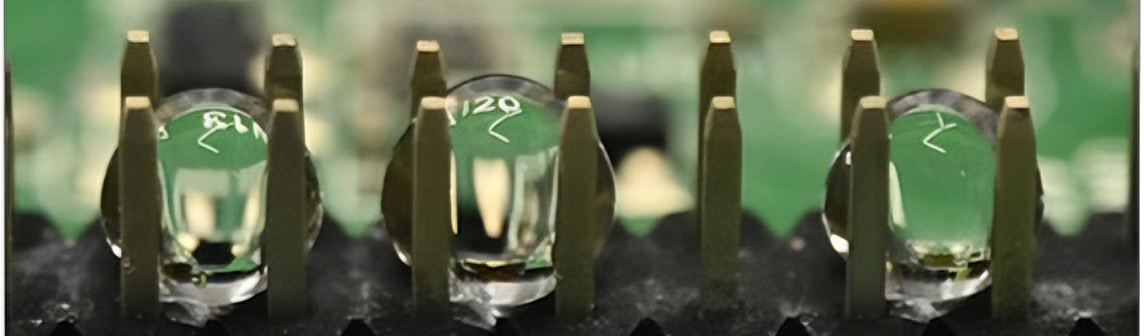

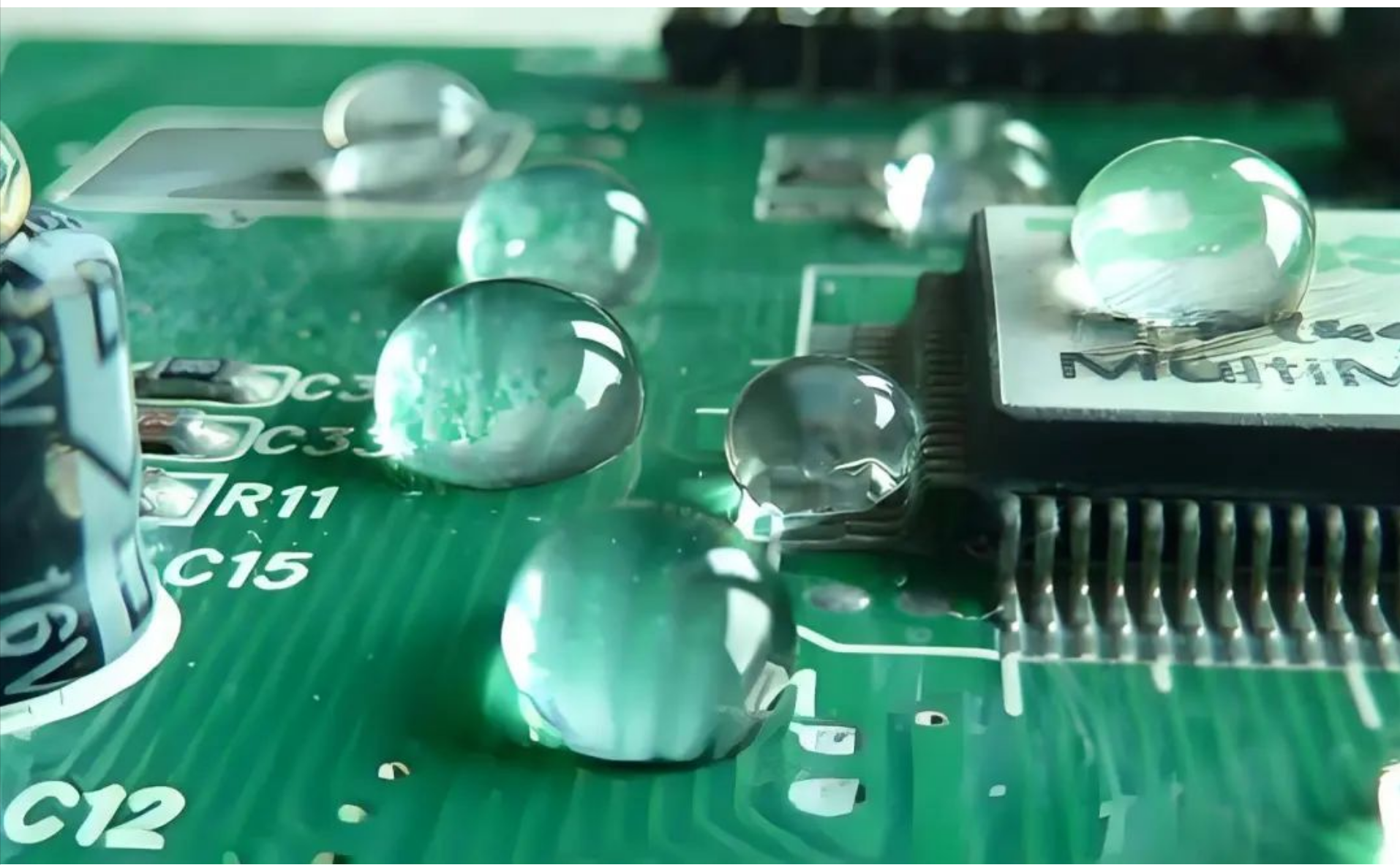

● Innovative superhydrophobic liquid nano coating providing insulation, anti-static, moisture-proof, anti-mold, and salt-spray protection
● Exceptional durability: resistant to chemical corrosion, extreme temperatures, and electrical stress
● Comprehensive coverage without interference: 360° protection of PCBA including connectors, switches, antennas, without affecting signal transmission

Ultra-Thin & Heat-Dissipating
● Ultra-thin design: moisture-proof layer

Fast-Cure
● 5-second fast curing, enabling efficient transition to subsequent processes
● Uniform, complete coverage of the material surface for full immersion coating

Related Patents

Applications

Where to Use

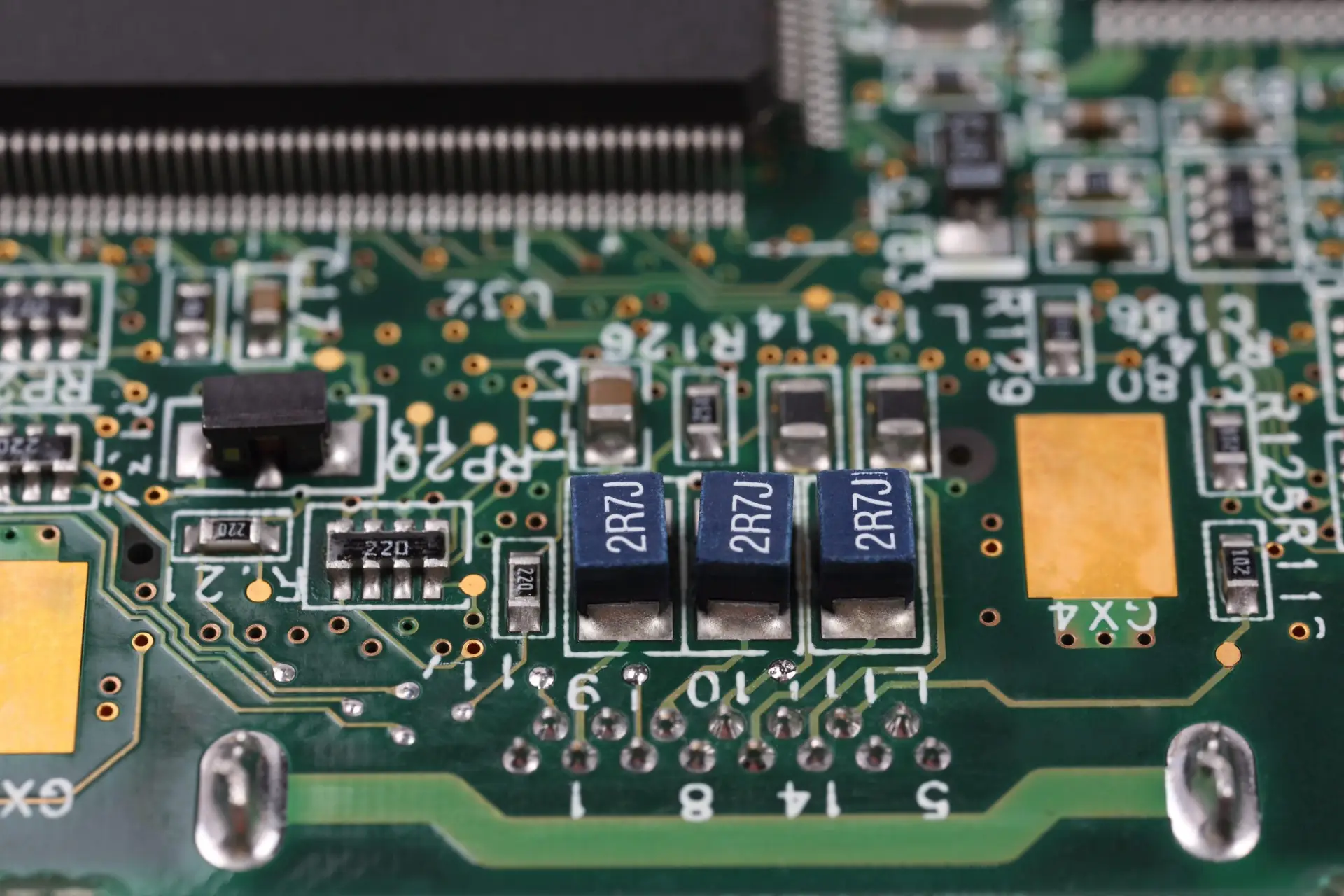

Suitable for the renewable energy, traditional outdoor electrical, LED, consumer electronics, and electronic components industries, covering PCBA boards, precision motors, bearings, and various precision instruments.

How to Apply

Supports dip coating, spray coating, and brush coating; no need to remove old adhesives, and welding or SMT operations are unaffected, allowing direct re-coating.

Performance & Testing

	Nano Conformal Coating	Conventional Conformal Coating / Protective Glue
Thickness	0.1–10 μm	70–100 μm
Heat Dissipation	Excellent	Poor
Drying Time	≤15 s	Surface Dry: 1–2 h Full Cure: 24 h
Environmental Friendliness	Fully Eco-friendly	Not Eco-friendly
Application Difficulty	By dipping or spraying	Brushing or spraying, prone to bubbles or uneven coverage
Reworkability	Direct recoating	Requires removal of original glue
Masking Requirement	None	Required

Technical Parameters of Protective Coating
Item	Specification
Appearance	Colorless transparent liquid
Coating Weight	(1.75 ± 0.05) g/cm²
Drying Time	15 s at room temperature
Solvent	Perfluoroether
Solvent Boiling Point	113.8°C
Flash Point	None (Closed cup method)
Compatibility	Insoluble in heptane, toluene, ethanol, water, etc.

Performance Specifications
Water Contact Angle	135–143°
Hydrophobicity	>110°
Oleic Acid Contact Angle	101–105°
n-Hexadecane Droplet Contact Angle	62°
Hardness	20–25 HD
Adhesion	Grade 0
Decomposition Temperature	272°C
Refractive Index	1.38
Breakdown Voltage	>30 kV, compliant with GB/T 507-2002 (Insulating Oil Breakdown Voltage Test Method)
Chemical Resistance	Salt spray test 72 h (pH 6.5), GB/T 10125-2012
Volume Resistivity	4.6 × 10¹² Ω·cm (25°C, 30% RH, 40 V DC) ASTM D150
Dielectric Constant	3.1 (25°C, 30% RH, 1 kHz) ASTM D150
Dissipation Factor	0.0089 (25°C, 30% RH, 1 kHz) ASTM D150
Dielectric Strength	1.0 kV / 25.4 μm (25°C, 3.0% RH) ASTM D149
